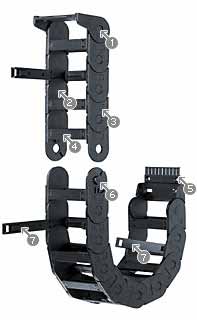

1.Large pins - long service life2.Cable-friendly interior3.Dirt-repellent4.Favourable inner dimension/outer dimension ratio5.integral strain relief6.Double stop-dog7.Series 27i (snap-open on inside), 27 (snap-open on outside)
Available inner widths Bi: 50 to 200 mmAvailable bending radii R: 63 to 250 mmPitch: 56 mm/link = 18 links / m
For new designs, we recommend the improved e-chain® series 2600 from the igus® E2/000 range.Secure support of the opening crossbars, improved opening mechanism, larger unsupported lengths, identical dimensions
Series 27i is available from stock in limited numbers.
For questions, please refer to your igus® contact person. Thank you for your understanding
regarding the E2/000 Series 2600
* The required clearance height is HF = H + 35 mm (with 2 kg/m fill weight), this should be taken into account for all application types.Please contact us if you have particularly narrow space conditions.
** The calculated length corresponds to the chain length without mounting brackets.
A=Moving end, B=Fixed endPitch: 56 mmChain links per m: 18Travel: SChain length = S/2 + K
Unsupported length versus fill weightX axis: Unsupported length in m FLB/FLGY axis: Fill weight in kg/mLower scale: Travel S in mFLB = Unsupported with permissible sagFLG = Unsupported with straight upper run
Samples and catalog order
E-Chain® Expert call
Service life calculation
Ask the product expert
Designing with igus®
7 widths and 8 bend radii
3 interior separation options

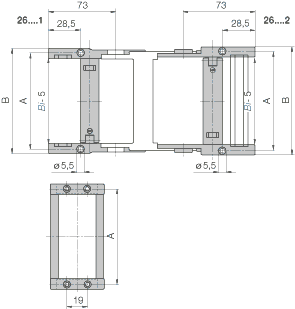

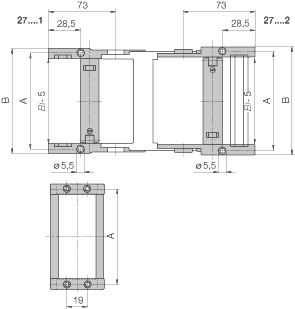

5 mounting bracket variants
Different strain relief options are possible
Available in many colours
Design specificationFurther information on "unsupported application"
Design specificationFurther information on "gliding application"
Other installation types

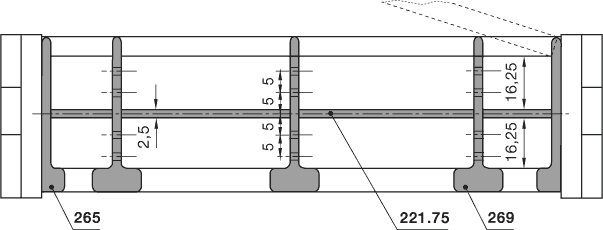

Option 1. Separators

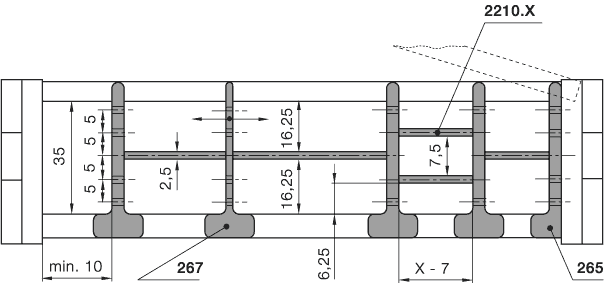

Option 2: Full-width shelves
Option 3: Shelves
This is only an option for the snap-open chains of type 27/27i This option is useful when using many thin cables with similar diameters. This variant always takes up the entire inner width of the chain.
This is only an option for type 27/27i snap-open chains. This option is useful for applications with many cables with different diameters. Both full width internal separation and partial width separation can be implemented.
Polymer - pivoting
Polymer - locking
KMA - pivoting
KMA - locking
"Super-aluminium", "Basic" guide trough
"Super-Alu" guide trough, "Heavy Duty"
Steel guide troughs
1. Trough side part, aluminium, 2 m
2. Glide bar, plastic, 2 m
3. Plastic glide strips*, side, 2 m
4. Clamping shoe, aluminium
5. C-profile, galvanised steel
6. Screw M6 x 16
7. Sliding nut M6
8. "Basic" connector, plastic
*without glide strips on request
"Super-aluminium" trough - the igus® standard for guide troughs
The "Super" aluminium trough is a modular system of guide troughs for long travels (where e-chains® are gliding on top of themselves). The basic "Super" aluminium trough has a simple and cost-efficient designs and can be expanded for sophisticated plant engineering.
Its universal design makes it the recommended igus® standard for guide troughs.
1. Interface connector
2. Plastic glide bar
3. Clamping shoe
4. Glide strips
9. Heavy-duty bracket option
10. Silencer profile, rubber
11. Screw M6 x 20
1. Aluminium profiles
3. Heavy-duty bracket option
6. Silencer profiles
1. Guide trough (blue)2. Glide bar (black)3. Installation set (red)4. Individual bracket without C-profile5. Profile rail length
+ Easy assembly using installation sets+ 2-part design - configurable from chain width+ Very stable+ cost-effective+ large selection
Guide trough without glide bars, Part No. 92.30, guide trough with glide bars Part No. 92.31
Installation sets, Part No. 92.50. XX
