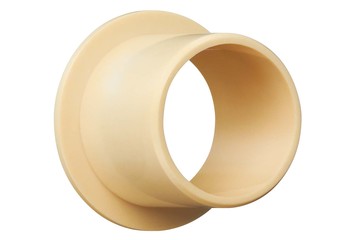

- Part number: P210SM-0405-04
- Material: iglidur® P210
- Shape: Sleeve bearings
- Dimensions:
- d1 4 mm
- d2 5.5 mm
- b1 4 mm
- Adjust dimension
- Manufacturing method: Injection moulding
- Service life:
- Specialist för svängningar, rullapplikationer m.m. - bra friktionskoefficienter och nötningshastigheter på nästan alla axlar.
- Låg fuktupptagning
- Extremt nötningsbeständigt särskilt vid belastning upp till 20 MPa vid svängning
- Mångsidigt: bra tillsammans med olika axelmaterial
- Bra vid kantbelastning
- Smörj- och underhållsfria
- Lagerfört standardsortiment
iglidur® P210 | Specialist for swivels, roller applications and more - Good friction and wear values on almost any shaft
With iglidur® P210, the user has a versatile all-rounder material at his disposal, which has an above-average service life, especially in swivel applications with medium loads of up to 20 MPa. The versatile material has already proven itself in numerous customer-specific solutions and as a semi-finished product material. Clip-on or pre-stressed designs and use in vehicle interiors are possible.
Typical areas of application
- Agricultural engineering
- Mechanical engineering
- Furniture / industrial design
- Textile industry
When do I use it?
- If you are looking for a universal material for use in damp environments
- When a very wear-resistant material is required for swivel applications in the medium load range
- When edge loads and impacts occur
- If the surface pressure of iglidur® J is not sufficient
When do I not use it?
- When a universal material with the greatest possible variety of dimensions is sought
- If a material is required for very highly loaded swivel applications
- When temperatures greater than +100 °C occur
