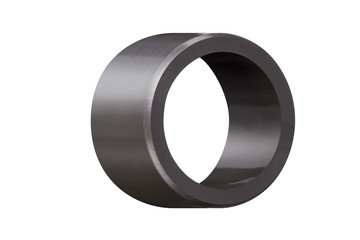

iglidur® M250, cylindriskt glidlager, mm

iglidur® M250 | The robust all-rounder with outstanding vibration damping

The self-lubricating material iglidur® M250 is particularly characterized by impact strength, vibration damping and wear resistance. It proves itself particularly well under stresses where a vibration-damping function of the material is required, e.g. in sports equipment and packaging machines. As it is also capable of embedding dirt, it is also suitable for agricultural machinery and gardening equipment.

Typical areas of application

• agricultural engineering
• Mechanical engineering
• Furniture / industrial design
• Textile industry

When do I use it?

• When the material is exposed to heavy soiling
• For excellent vibration damping
• At low to medium speeds
• When mechanical reworking is required
• Insensitive to edge pressure
• High impact strength
• Thick wall thicknesses according to DIN 1850

When should I not use it?

• For applications in wet areas
• When very high precision is required
• For very smooth shafts
• When a cost-effective material with maximum wear resistance is required
